OEM Printing Single Key Membrane Switch With Red Window Weld Pin PC Overlay

  • 1
  • 2

Brand Name : Wenyi Electronics

Model Number : GPI-FMS-034

Certification : RoHs, SGS, ISO9001

Place of Origin : Made in China

MOQ : 10 pcs / lot

Price : Negotiable

Payment Terms : T/T, L/C, D/A, D/P, Western Union, MoneyGram

Supply Ability : 5,000,000 pcs / Months

Delivery Time : 10-12 working days

Packaging Details : ploybag for each, then in carton box

Circuit type : PET flexible Cirucit

Embossing : embossing

Back adhesive : 3M 467

Life Span : no less than 1 Million operation Times

Overlay : PET 0.175mm

Dome Type : Poly Dome

Contact Now

OEM Printing Single Key Membrane Switch With Red Window Weld Pin PC Overlay

Item description:

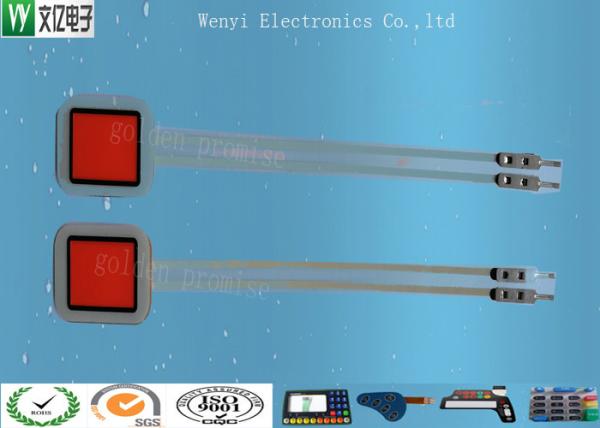

Weld Pin PC Overlay Red Window Poly Dome Single Keys Embossing Membrane Switch

Circuit type: 0.1mm Flexible PET Silver Ink

Special Point: Poly Dome

Touch force: 300g

Backadhesive: 3M 467

Connetor: ZIF Connector weld Pin

Defect rate: less than 0.5%

Guarantee: 1 year quality Guarantee for all customers

Product Characters:

  1. PET 0.175mm Overlay.
  2. PC/PET :High Glossy , Glossy, Matte Finish available
  3. Waterproof Available. IP54,IP67 IP65
  4. Color keys screen print or Digital Print are available
  5. Withstand millions of cycles
  6. Stable in quality: defect rate less then 5 pcs out of 1000 pcs
  7. 100% computer test before delivery.
  8. Various membrane switch Design available

Our Advantage:

  1. Strong R&D capability for various industrial use membrane switch
  2. Advanced Equipment and Technolodgy.
  3. Over 13 years experience in the industry.
  4. Professional manufacturer with experienced employee

Technical Specification:

⒈ Voltage: 　　≤50VDC
2.Currency 　　≤100mA
⒊contact Resistance: 　　0.5~10Ω
⒋Insulution resistance: 　　≥100MΩ(100VDC)
⒌ Base Material withstand Voltage : 　　2kDVC
⒍ Snap back time: 　　≤6ms
⒎Loop resistance: 　50Ω,150Ω,350Ω
⒏Insulate Ink withstand Voltage : 　100VDC
Mechnical Data:
⒈ Reliable Life Span: 　　>1 million operation times
⒉ Closed displacement: 　0.1~0.4mm(Notactile type)
　　0.4~1.0mm ( tactile type)
⒊ Touch Force: 　　15~750g
⒋ Silver Paste Resistance Change Rate: 　　 at 55℃,Humidity 90%,56 hours later,resistance between two wire loops :10MΩ/50VDC
6.Circuit width and Technical request 　　Circuit width ≥0.3mm,Distance between two wires 0.3mm,blur of wire <1/3,Line Gap <1/4 circuit width.
⒎Wire lead Pitch: 　0.3,0.5,0.8,1.0, 1.25, 2.0, 2.54, 2.50, 1.27, 1.25, 5.08 mm
⒏ wire lead anti-curve rate 　test with d=10mm steel Roller with 80times, no breakage
Environment:
⒈Working Temperature: 　　－20℃～+70℃
　　2. Large air pressure:86～106KPa
