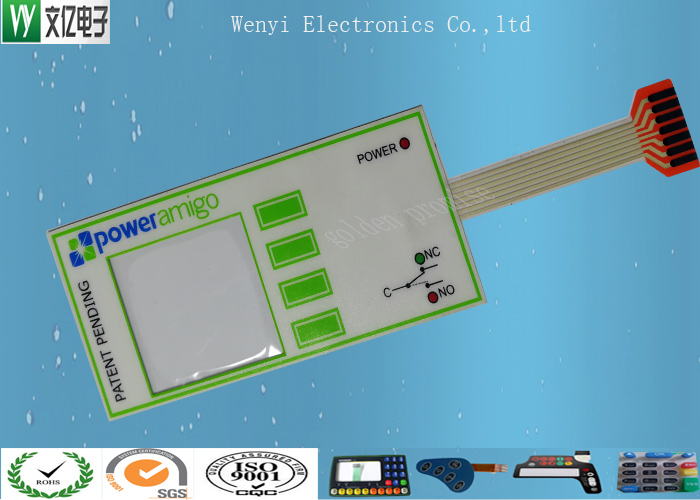

Flexible Circuit Membrane Control Panel / Pcb Membrane Keypad 4 mm Metal Dome

  • 1
  • 2

Brand Name : Wenyi Electronics

Model Number : GPI-FMS-016

Certification : RoHs, SGS, ISO9001

Place of Origin : Made in China

MOQ : 10 pcs / lot

Price : Negotiable

Payment Terms : T/T, L/C, D/A, D/P, Western Union, MoneyGram

Supply Ability : 5,000,000 pcs / Months

Delivery Time : 12-14 working days

Packaging Details : ploybag for each, then in carton box

Circuit type : PET flexible Circuit

Embossing : Pillow embossing

Backadhesive : 3M Serious

Connector : ZIF Connetor

Overlay : Fine sanding effect

Life Span : no less than 1 Million operation Times

Contact Now

Flexible Circuit Membrane Control Panel / Matte Finish 14 Mm Pcb Membrane Keypad

Item description:

Matte Finish 14 mm Metal Dome Square Pillow Embossing Membrane Switch

Circuit type: Flexible PET

Button type: embossing metal dome keys

Metal Dome:14MM with dimple or non dimple, Nickel palted or stanlessness steel, gold plated

Backadhesive: 3M Series.

Defect rate: less than 0.3%

Guarantee: 1 year quality Guarantee for all customers or 1 million opeation life time

Product Characters:

  1. Custom made OEM/ODM
  2. Epoxy keys available
  3. Textured surface
  4. Color keys screen print are available
  5. Withstand millions of cycles
  6. Perfect exterior

Our Advantage:

  1. We Focus in membrane switch and related items.
  2. Strong R&D capability
  3. Low cost and competitive price
  4. Short Lead time for samples and Mass production
  5. 100% computer test and inspection before shipment
  6. One stop purchase available for customer
  7. Whole solution design available

Applications:

  1. * Household appliances
  2. * Security systems
  3. * Various industry control keypad panel
  4. * consumer electronics and 3C item
  5. * Various Industrial Control Keypad

Technical Specification:

Electronical charateristic:
⒈ Voltage: 　　≤50VDC
2.Currency 　　≤100mA
⒊contact Resistance: 　　0.5~10Ω
⒋Insulution resistance: 　　≥100MΩ(100VDC)
⒌ Base Material withstand Voltage : 　　2kDVC
⒍ Snap back time: 　　≤6ms
⒎Loop resistance: 　50Ω,150Ω,350Ω
⒏Insulate Ink withstand Voltage : 　100VDC
Mechnical Data:
⒉ Closed displacement: 　0.1~0.4mm(Notactile type)
　　0.4~1.0mm ( tactile type)
⒋ Silver Paste Resistance Change Rate: 　　 at 55℃,Humidity 90%,56 hours later,resistance between two wire loops :10MΩ/50VDC
5. Exterior for Circuit 　No oxidation , no impurity
6.Circuit width and Technical request 　　Circuit width ≥0.3mm,Distance between two wires 0.3mm,blur of wire <1/3,Line Gap <1/4 circuit width.
